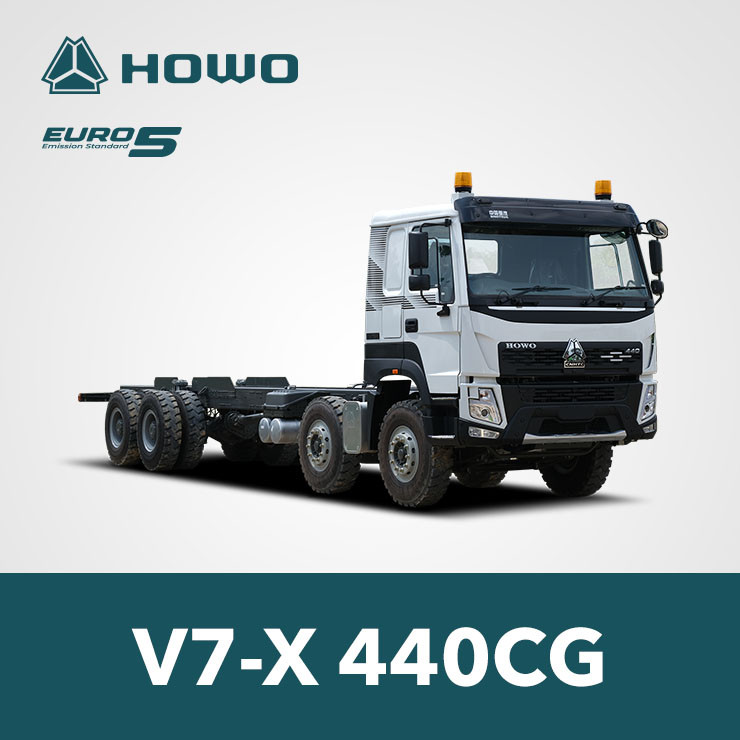

The HOWO V7-X from China National Heavy Duty Truck Group (CNHTC) is a commercial vehicle featuring an excellent lightweight design. The engine, transmission, axles, suspension, fuel tank, air tanks, and peripheral accessories are all optimized, allowing for a lower overall curb weight compared to competitors. Engine options include various models from Weichai Power, such as the WP8, WP10, WP10.5H, and WP12. It is possible that 13-liter engines may also be available for the HOWO V7-X dump truck in the future.
The HOWO V7-X from China National Heavy Duty Truck Group (CNHTC) is a commercial vehicle featuring an excellent lightweight design. The engine, transmission, axles, suspension, fuel tank, air tanks, and peripheral accessories are all optimized, allowing for a lower overall curb weight compared to competitors. Engine options include various models from Weichai Power, such as the WP8, WP10, WP10.5H, and WP12. It is possible that 13-liter engines may also be available for the HOWO V7-X dump truck in the future.
In summary, the HOWO V7-X demonstrates excellent power, lightweight, eco-friendliness and comfort.
DIMENSI / DIMENSION | |
---|---|
Panjang / Overall Length [OAL] | 7,350 mm |
Lebar / Overall Width [OW] | 2,294 mm |
Tinggi / Overall Height [OH] | 2,750 mm |
Jarak Sumbu / Wheelbase [WB] | 4,200 mm |
Julur Depan / Front Overhang [FOH] | 1,266 mm |
Julur Belakang / Rear Overhang [ROH] | 1,855 mm |
Jarak Terendah ke Tanah / Minimum Clearance [HH] | 287 mm |
Jejak Depan / Front Tread [AW] | 1,680 mm |
Jejak Belakang / Rear Tread [CW] | 1,725 mm |
Ukuran Badan / Body Dimensions | - |
MESIN / ENGINE | |
Model | WP4.1Q150A0 |
Tipe / Type | 4 Stroke Direct Injection Diesel Engine 6 cylinder in line with water cooling, Intercooler Turbocharged |
Sistem Kontrol Emisi | EURO 2 |
Jumlah Silinder / No. of Cylinders | 4 |
Diameter x Langkah / Bore x Stroke | 126 X 155 mm |
Isi Silinder / Piston Displacement | 4,088 cc |
Tenaga Maksimum / Maximum Power | 150 / 2,600 HP/rpm |
Torsi Maksimum / Maximum Torque | 500 / 1,200 - 1,800 Nm/rpm |
KOPLING / CLUTCH | |
Tipe/Type | Diaphragm spring clutch, single plate |
Diameter / Diameter | 380 |
TRANSMISI / TRANSMISSION | |
Model | 8JS85TE |
BERAT / WEIGHT | |
Berat Kosong Kendaraan / Curb Weight | 4,650 kg |
Berat Total Kendaraan / Gross Vehicle Weight (GVW) | 16,000 kg |
Kapasitas Gardan Depan / Capacity Front Axle | 2,500 kg |
Kapasitas Gardan Belakang / Capacity Rear Axle | 9000 kg |
REM / BRAKE | |
Tipe/Type | Full Air Brake |
Rem Kaki / Service Brake | Dual circuit compressed air brake |
Rem Tangan / Hand Brake / Parking Brake | Spring energy, compressed air opera |
Rem Pembantu / Auxiliary Brake | Engine exhaust valve brake |
Anti-lock Braking System (ABS) | No |
RODA / TYRE | |
Ukuran Ban | 9.00R20 |
Ukuran Velg | 7-20 |
SUMBU / AXLE | |
Depan / Front | 2080 (2,5 Ton) |
Belakang / Rear | 153AS (9 Ton) |
LAIN-LAIN / OTHERS | |
Kapasitas Tangki / Fuel Tank Capacity | 150 ltr |
Radius Putar Minimum / Minimum Turning Radius | 16 m |
Daya Tanjak Maksimum / Maximum Gradeability | 34-36 % |
Kecepatan Maksimum / Maximum Speed | 90 km/h |
Kelistrikan / Electrics | Operating voltage: 24 V, negative grounded Starter, Alternator, Batteries, Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Garansi / Warranty | 1 Tahun / 100,000 km |
SASIS & RANGKA / CHASSIS & FRAME | |
Rangka / Frame | Material high tensile steel |
Ukuran Rangka / Frame Dimensions | 255×70×(8+5) mm |
SUSPENSI / SUSPENSION | |
Depan / Front | Semi-elliptical leaf springs with shock absorbers and stabilizer |
Belakang / Rear | Semi-elliptical leaf springs |
* Untuk meningkatkan mutu dan penyesuaian dengan perkembangan teknologi, spesifikasi dapat berubah sewaktu-waktu tanpa pemberitahuan. | |
* The manufacturer reserves the right of technical alteration/change for better improvement without prior notice! |
