Do difficult jobs in an easy way The HOWO Mining Trucks, produced by Sinotruk, are specifically engineered for heavy-duty operations in mining and construction environments. These trucks are renowned for their durability, substantial payload capacities, and robust performance, making them a preferred choice for demanding tasks. In various mining scenarios of coal mine, gold mine and nickel mine, gravels, large ore and all other ores can be handled by HOWO mine trucks. Featuring 30T-150T load, high safety, high attendance and high reliability, HOWO mine truck is your best choice for ore loading.
Do difficult jobs in an easy way
The HOWO Mining Trucks, produced by Sinotruk, are specifically engineered for heavy-duty operations in mining and construction environments. These trucks are renowned for their durability, substantial payload capacities, and robust performance, making them a preferred choice for demanding tasks.
In various mining scenarios of coal mine, gold mine and nickel mine, gravels, large ore and all other ores can be handled by HOWO mine trucks.
Featuring 30T-150T load, high safety, high attendance and high reliability, HOWO mine truck is your best choice for ore loading.
DIMENSI / DIMENSION | |
---|---|
Panjang / Overall Length [OAL] | 8.820 mm |
Lebar / Overall Width [OW] | 2.630 mm |
Tinggi / Overall Height [OH] | 3.560 mm |
Jarak Sumbu / Wheelbase [WB] | 3.800 + 1.350 mm |
Julur Depan / Front Overhang [FOH] | 1.550 mm |
Julur Belakang / Rear Overhang [ROH] | 900 mm |
Jarak Terendah ke Tanah / Minimum Clearance [HH] | 340 mm |
Jejak Depan / Front Tread [AW] | 2.030 mm |
Jejak Belakang / Rear Tread [CW] | 1.866 mm |
Ukuran Badan / Body Dimensions | - |
MESIN / ENGINE | |
Model | WD615.47 |
Tipe / Type | 4 Stroke Direct Injection Diesel Engine 6 cylinder in line with water cooling, Intercooler Turbocharged |
Sistem Kontrol Emisi | EURO 2 |
Jumlah Silinder / No. of Cylinders | 6 |
Diameter x Langkah / Bore x Stroke | 126 X 130 mm |
Isi Silinder / Piston Displacement | 9.726 cc |
Tenaga Maksimum / Maximum Power | 371 / 2.200 HP/rpm |
Torsi Maksimum / Maximum Torque | 1.500 / 1.100 - 1.600Nm/rpm |
KOPLING / CLUTCH | |
Tipe/Type | Single dry plate, Diaphragm-spring clutch, Hydraulically operang with air assistance |
Diameter / Diameter | 430 |
TRANSMISI / TRANSMISSION | |
Model | HW19709XST |
BERAT / WEIGHT | |
Berat Kosong Kendaraan / Curb Weight | 9.900 kg |
Berat Total Kendaraan / Gross Vehicle Weight (GVW) | 41.000 kg |
Kapasitas Gardan Depan / Capacity Front Axle | 9.000 x 2 kg |
Kapasitas Gardan Belakang / Capacity Rear Axle | 16.000 x 2 kg |
REM / BRAKE | |
Tipe/Type | Full Air Brake |
Rem Kaki / Service Brake | Dual circuit compressed air brake |
Rem Tangan / Hand Brake / Parking Brake | Spring energy, compressed air operang on rear wheels |
Rem Pembantu / Auxiliary Brake | Engine exhaust valve brake |
Anti-lock Braking System (ABS) | No |

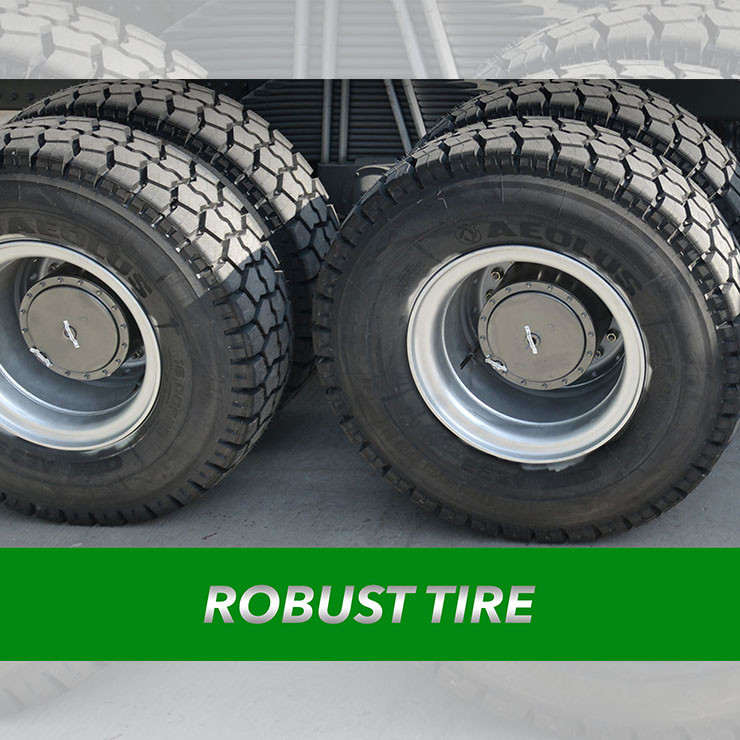

RODA / TYRE | |
Ukuran Ban | 12.00R20 |
Ukuran Velg | 8.5-20 |
SUMBU / AXLE | |
Depan / Front | VGD95 (9x2 Ton) |
Belakang / Rear | MCP16ZG (2x16 Ton) |
LAIN-LAIN / OTHERS | |
Kapasitas Tangki / Fuel Tank Capacity | 300 ltr |
Radius Putar Minimum / Minimum Turning Radius | 10.5m |
Daya Tanjak Maksimum / Maximum Gradeability | 30 % |
Kecepatan Maksimum / Maximum Speed | 70 km/h |
Kelistrikan / Electrics | Operating voltage: 24 V, negative grounded Starter, Alternator, Batteries, Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Garansi / Warranty | 1 Tahun / 100,000 km |

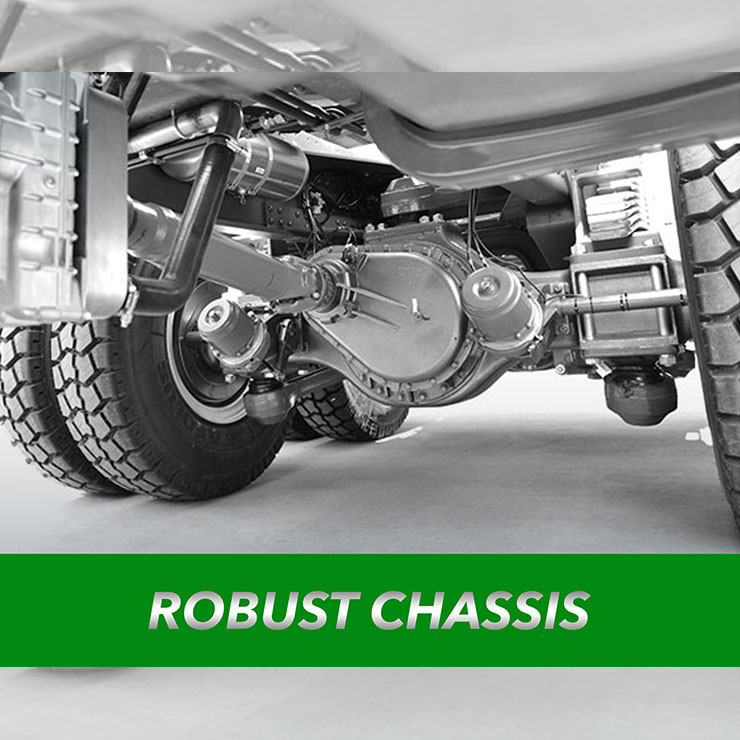

SASIS & RANGKA / CHASSIS & FRAME | |
Rangka / Frame | Double layer frame |
Ukuran Rangka / Frame Dimensions | 300x80×(8+8) mm |

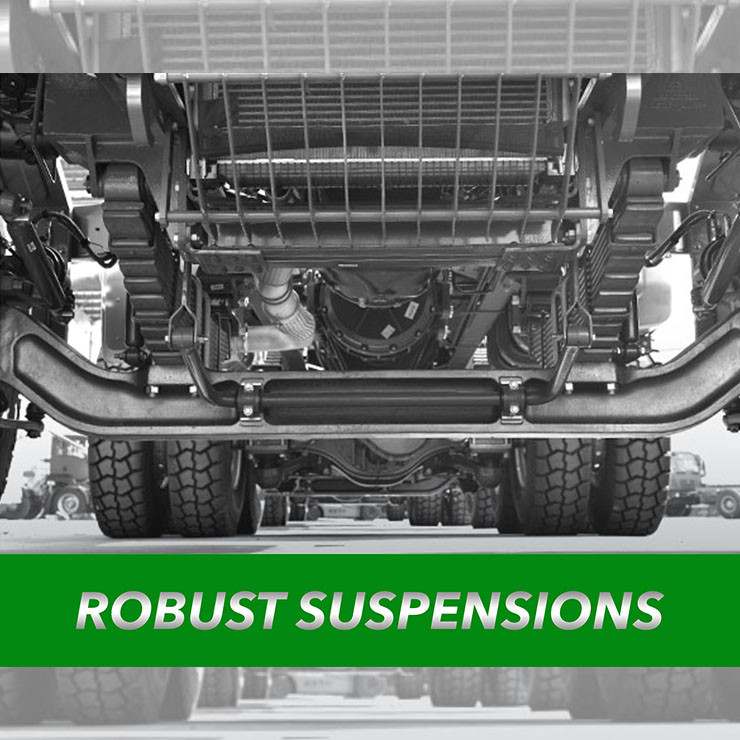

SUSPENSI / SUSPENSION | |
Depan / Front | With hydraulic telescopic double-acon shock absorbers 10 layer Semi-ellipc leaf springs |
Belakang / Rear | 12 layer Semi-ellipc leaf springs with bogie spring and stabilizer |
* Untuk meningkatkan mutu dan penyesuaian dengan perkembangan teknologi, spesifikasi dapat berubah sewaktu-waktu tanpa pemberitahuan. | |
* The manufacturer reserves the right of technical alteration/change for better improvement without prior notice! |
