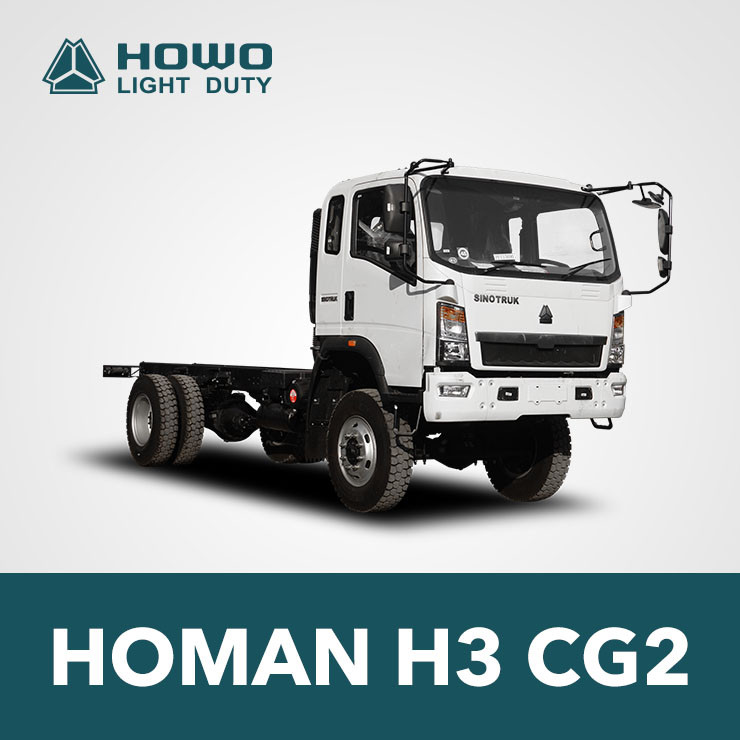

With smaller turning radius, more flexible control and lighter body, HOWO light trucks can shuttle flexibly in the city. It meets various transportation needs in the city; the blind patch mirror, lower mirror, frame rear-view mirror and wide field of view windshield provide a panoramic view of everything around the vehicle. Users don’t have to worry about any blind spots, thus securing safety and reliability; low pedal makes boarding and getting off faster and more convenient, and makes work more efficient. The engine power chain suitable for various displacement and torque of light truck makes HOWO light truck meet the transportation needs of some cities.
With smaller turning radius, more flexible control and lighter body, HOWO light trucks can shuttle flexibly in the city.
It meets various transportation needs in the city; the blind patch mirror, lower mirror, frame rear-view mirror and wide field of view windshield provide a panoramic view of everything around the vehicle.
Users don’t have to worry about any blind spots, thus securing safety and reliability; low pedal makes boarding and getting off faster and more convenient, and makes work more efficient.
The engine power chain suitable for various displacement and torque of light truck makes HOWO light truck meet the transportation needs of some cities.
DIMENSI / DIMENSION | |
---|---|
Panjang / Overall Length [OAL] | 7,350 mm |
Lebar / Overall Width [OW] | 2,294 mm |
Tinggi / Overall Height [OH] | 2,750 mm |
Jarak Sumbu / Wheelbase [WB] | 4,200 mm |
Julur Depan / Front Overhang [FOH] | 1,266 mm |
Julur Belakang / Rear Overhang [ROH] | 1,855 mm |
Jarak Terendah ke Tanah / Minimum Clearance [HH] | 287 mm |
Jejak Depan / Front Tread [AW] | 1,680 mm |
Jejak Belakang / Rear Tread [CW] | 1,725 mm |
Ukuran Badan / Body Dimensions | - |
MESIN / ENGINE | |
Model | WP4.1Q150A0 |
Tipe / Type | 4 Stroke Direct Injection Diesel Engine 6 cylinder in line with water cooling, Intercooler Turbocharged |
Sistem Kontrol Emisi | EURO 2 |
Jumlah Silinder / No. of Cylinders | 4 |
Diameter x Langkah / Bore x Stroke | 126 X 155 mm |
Isi Silinder / Piston Displacement | 4,088 cc |
Tenaga Maksimum / Maximum Power | 150 / 2,600 HP/rpm |
Torsi Maksimum / Maximum Torque | 500 / 1,200 - 1,800 Nm/rpm |
KOPLING / CLUTCH | |
Tipe/Type | Diaphragm spring clutch, single plate |
Diameter / Diameter | 380 |
TRANSMISI / TRANSMISSION | |
Model | 8JS85TE |
BERAT / WEIGHT | |
Berat Kosong Kendaraan / Curb Weight | 4,650 kg |
Berat Total Kendaraan / Gross Vehicle Weight (GVW) | 16,000 kg |
Kapasitas Gardan Depan / Capacity Front Axle | 2,500 kg |
Kapasitas Gardan Belakang / Capacity Rear Axle | 9000 kg |
REM / BRAKE | |
Tipe/Type | Full Air Brake |
Rem Kaki / Service Brake | Dual circuit compressed air brake |
Rem Tangan / Hand Brake / Parking Brake | Spring energy, compressed air opera |
Rem Pembantu / Auxiliary Brake | Engine exhaust valve brake |
Anti-lock Braking System (ABS) | No |
RODA / TYRE | |
Ukuran Ban | 9.00R20 |
Ukuran Velg | 7-20 |
SUMBU / AXLE | |
Depan / Front | 2080 (2,5 Ton) |
Belakang / Rear | 153AS (9 Ton) |
LAIN-LAIN / OTHERS | |
Kapasitas Tangki / Fuel Tank Capacity | 150 ltr |
Radius Putar Minimum / Minimum Turning Radius | 16 m |
Daya Tanjak Maksimum / Maximum Gradeability | 34-36 % |
Kecepatan Maksimum / Maximum Speed | 90 km/h |
Kelistrikan / Electrics | Operating voltage: 24 V, negative grounded Starter, Alternator, Batteries, Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Garansi / Warranty | 1 Tahun / 100,000 km |
SASIS & RANGKA / CHASSIS & FRAME | |
Rangka / Frame | Material high tensile steel |
Ukuran Rangka / Frame Dimensions | 255×70×(8+5) mm |
SUSPENSI / SUSPENSION | |
Depan / Front | Semi-elliptical leaf springs with shock absorbers and stabilizer |
Belakang / Rear | Semi-elliptical leaf springs |
* Untuk meningkatkan mutu dan penyesuaian dengan perkembangan teknologi, spesifikasi dapat berubah sewaktu-waktu tanpa pemberitahuan. | |
* The manufacturer reserves the right of technical alteration/change for better improvement without prior notice! |
